The Canyon Retreat | Recent Catio Build in Lowden Washington

View More Projects Across Washington
View More Projects Across Lowden

📍Location📍

Lowden, WA

Get a Free Quote Today

Project Overview

This custom catio was thoughtfully designed to provide four beloved cats in Lowden, WA with a spacious, secure outdoor retreat they could access freely from their home. Measuring 10 feet wide by 8 feet deep and 8 feet tall, the freestanding structure was built to offer ample room for exploration while ensuring long-term durability against Washington’s ever-changing weather. The goal was to create a safe, enriching environment where the cats could experience the outdoors without compromising comfort or structural integrity.

Constructed with pressure-treated lumber, 1×1 black PVC-coated critter fencing, and topped with a classic ribbed steel metal roof, the catio was built to withstand moisture, wind, and seasonal elements. A short tunnel connects directly from the house wall through a cat door, allowing seamless access while keeping the main structure fully freestanding. Inside, shelves, ramps, and a cedar scratch post provide vertical enrichment, encouraging climbing, perching, and natural feline behaviors—all within a secure and thoughtfully crafted space.

Project Goals

  • Build a spacious 10′ x 8′ x 8′ freestanding catio large enough to comfortably accommodate four cats
  • Ensure the structure remains fully freestanding and not directly attached to the house
  • Install a short tunnel and wall cat door to allow safe, independent entry and exit
  • Create multiple vertical enrichment features, including shelves and ramps for climbing and perching
  • Incorporate a cedar scratch post to encourage natural scratching behavior
  • Use durable, weather-resistant materials capable of withstanding Washington’s climate
  • Provide enough interior space for the owners to comfortably spend time inside with their cats
  • Design a secure outdoor environment that allows the cats to safely experience fresh air and outdoor sights
Orange tabby cat walking along an elevated wooden shelf inside a cedar catio, surrounded by wire mesh walls and exposed roof beams.

Design Challenges

  • Designing an enclosure spacious enough for four cats without overwhelming the yard
  • Creating a fully freestanding structure that would not attach directly to the house
  • Installing a permanent cat door through the exterior wall while maintaining structural integrity
  • Ensuring the tunnel connection remained secure, weather-protected, and visually cohesive
  • Building a stable foundation without digging post holes or disturbing the existing yard

Key Design Features

  • Fully freestanding custom enclosure (10′ W x 8′ D x 8′ H) designed to provide generous space while preserving usable yard area
  • Short enclosed tunnel connection (3′ T x 4′ W, 2–4 linear feet) linking the home to the catio through a wall-mounted cat door for seamless access
  • Corrugated metal roofing on both the main structure and tunnel to provide reliable protection from Washington’s rain and seasonal weather
  • Deck-based foundation system offering enhanced stability without the need for in-ground posts
  • Pressure-treated lumber framing for long-term durability and structural strength
  • 1×1 black PVC-coated critter fencing to ensure safety while maintaining strong visibility and airflow
  • Interior shelves and ramps to encourage climbing, exploration, and elevated perching
  • Cedar scratch post integrated for natural scratching behavior and enrichment
  • Custom-built human access door allowing owners to comfortably enter and spend time inside with their cats

Build Specifications

This build was designed to provide a spacious, secure outdoor experience while maintaining durability, weather resistance, and full structural independence from the home. Constructed as a fully freestanding enclosure, it allows the cats to enjoy fresh air and vertical enrichment while preserving the integrity of the house and surrounding yard space.

Dimensions & Layout

  • Main Catio Structure: Approximately 10 feet wide x 8 feet deep x 8 feet tall. Built as a fully freestanding enclosure, the structure offers generous interior space for four cats to climb, lounge, and explore comfortably. Includes a human-sized access door for easy entry and shared time inside the enclosure.
  • Tunnel System: A 3-foot tall x 4-foot wide enclosed tunnel (2–4 linear feet long) extends from the house wall to the catio, providing direct access through a permanently installed wall-mounted cat door. The tunnel is fully enclosed and protected with a classic ribbed steel metal roof to ensure year-round weather protection.
  • Structural Materials & Protection: Constructed with pressure-treated lumber framing for long-term durability, enclosed with 1×1 black PVC-coated critter fencing for safety and visibility, and topped with a classic ribbed steel metal roof designed to withstand Washington’s seasonal weather conditions.
  • Interior Enrichment Features: Equipped with integrated shelves and ramps to promote climbing and elevated perching, along with a cedar scratch post to encourage natural scratching behavior and enrichment within the secure outdoor space.

Catio Gallery

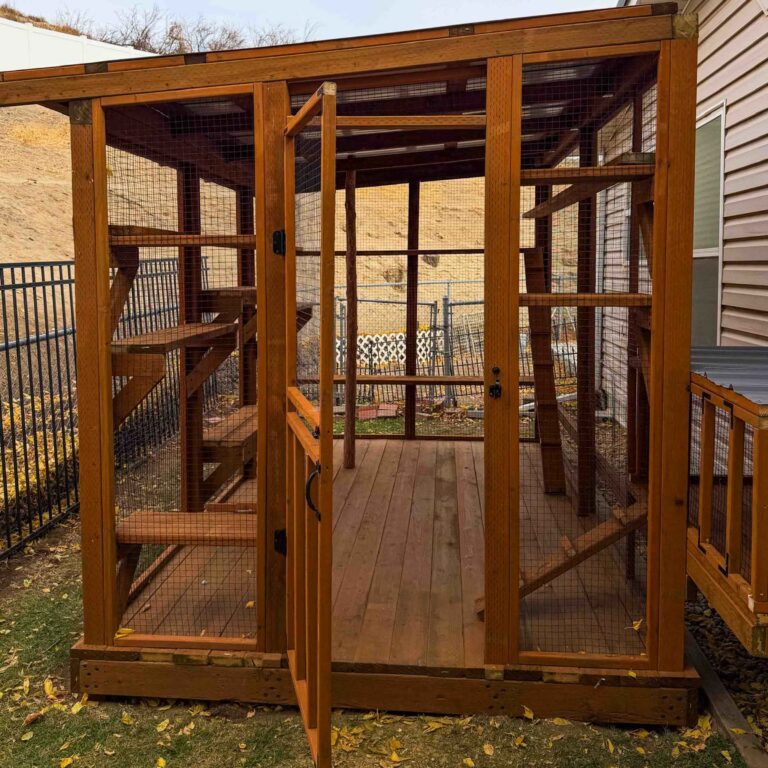

Detailed exterior view of a cedar catio with the front door open, showcasing reinforced framing, wire mesh panels, and a weather-protected roof attached securely to the side of a house.

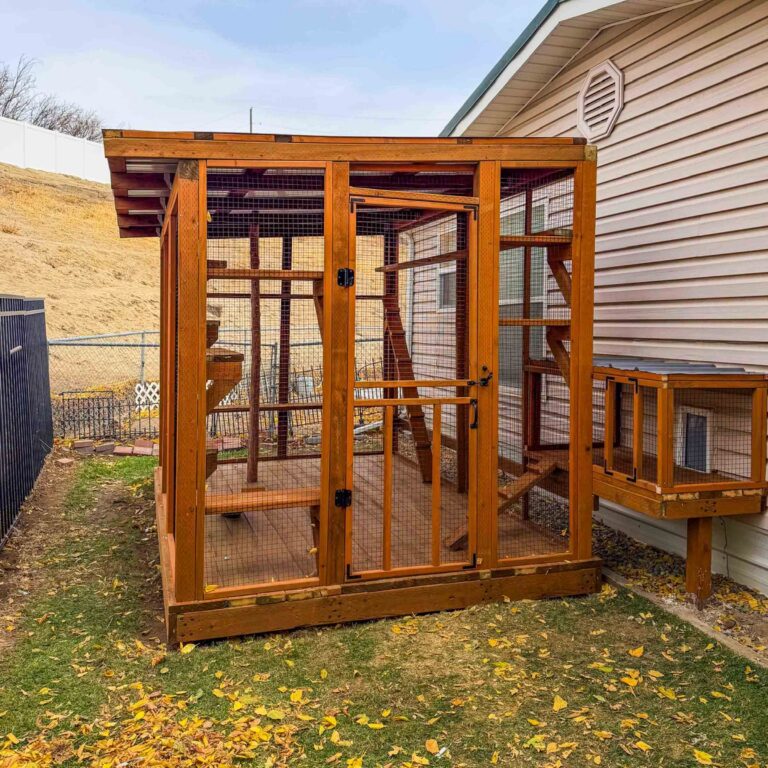

Exterior view of a large custom cedar catio attached to a home, featuring a slanted weather-protected roof, secure mesh walls, full-size entry door, and elevated window tunnel connection in a backyard with autumn leaves.

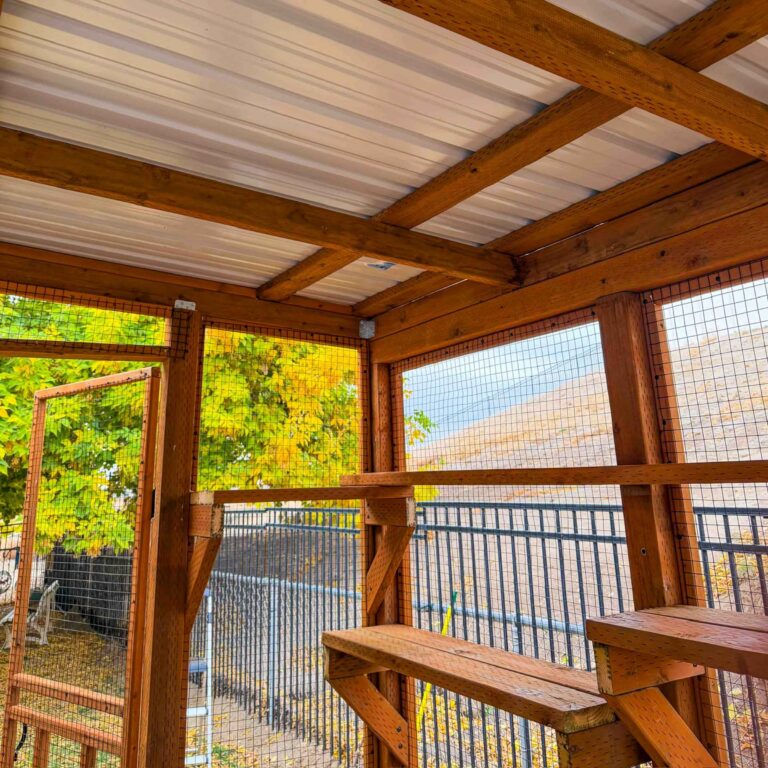

Interior view of a cedar catio roof structure showing exposed wooden beams, secure wire mesh walls, and multi-level shelves beneath a weather-protected slanted roof.

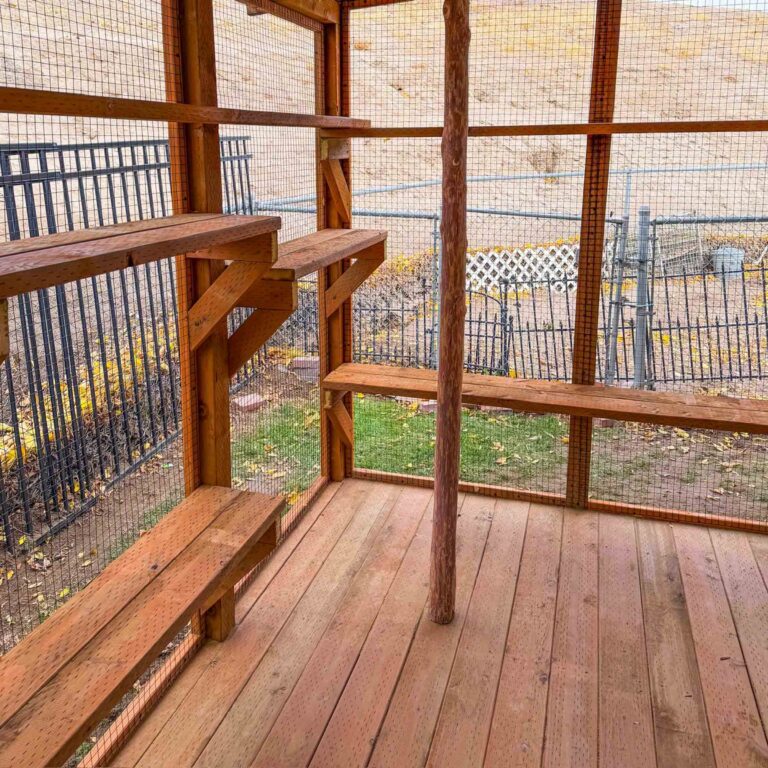

Spacious interior of a custom wooden catio featuring staggered climbing shelves, a vertical natural wood post for scratching or climbing, and a solid cedar deck floor.

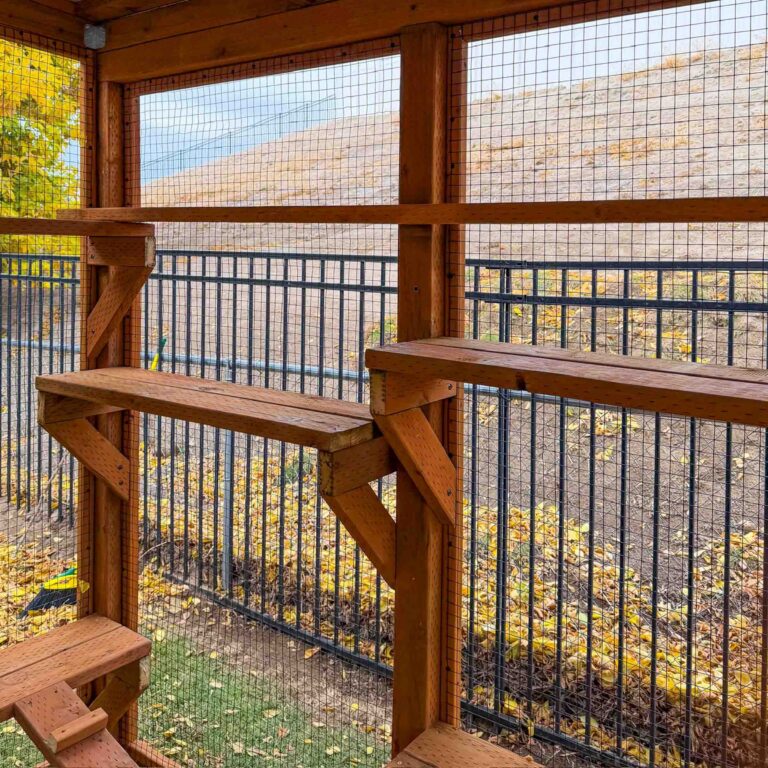

Interior catio wall with multiple cedar perching shelves mounted at different heights, overlooking a fenced backyard through secure wire mesh panels.

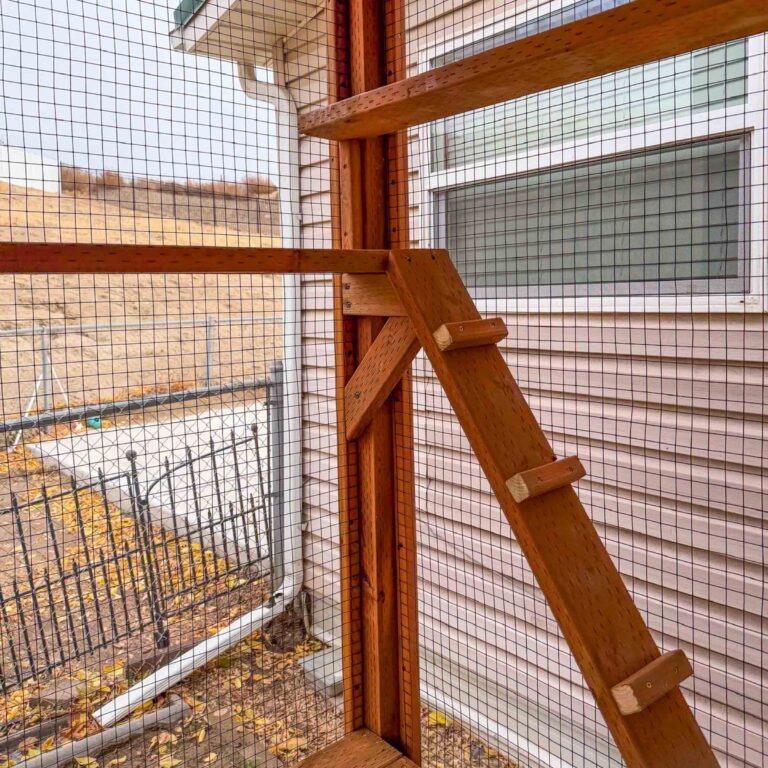

Close-up interior view of a wooden catio climbing ramp with traction cleats leading to a mid-level shelf, surrounded by secure wire mesh panels and house siding backdrop.

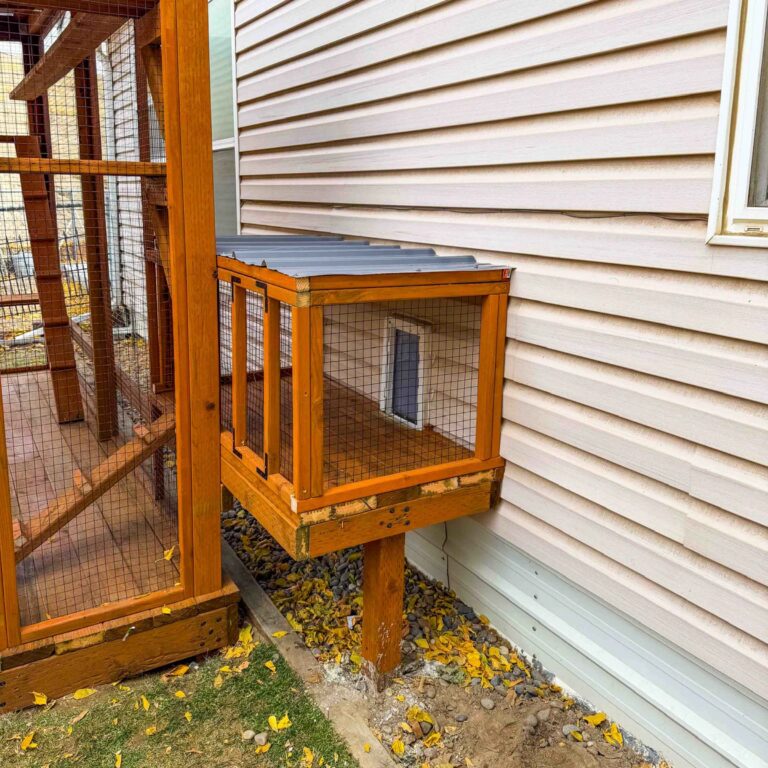

Side view of an elevated catio window tunnel supported by a wooden post, featuring cedar framing, wire mesh sides, and a protective metal roof above a landscaped gravel border.

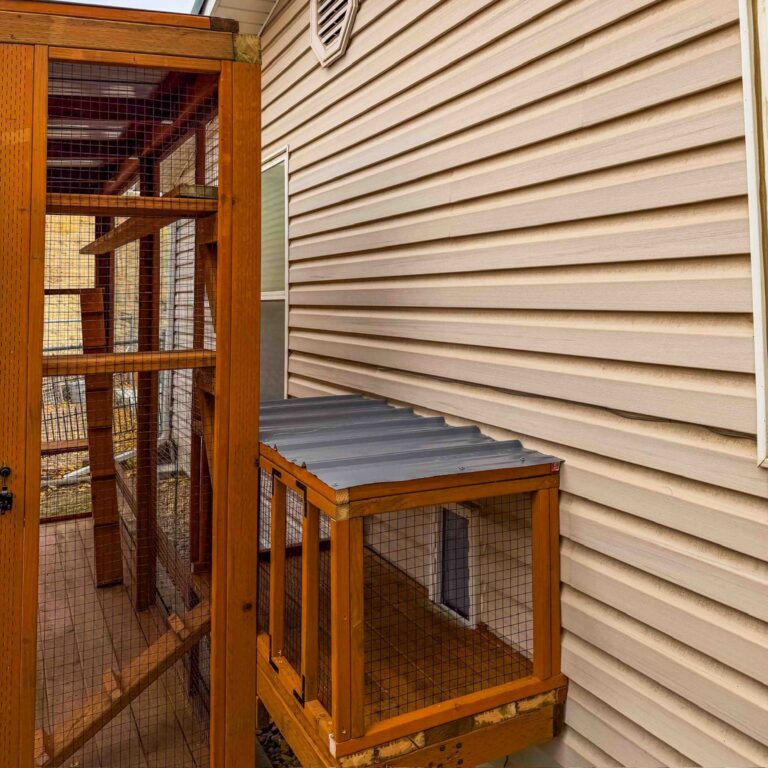

Elevated window catio connection box with a metal roof, cedar framing, and secure mesh panels mounted to the exterior of a home, allowing safe indoor-to-outdoor cat access.

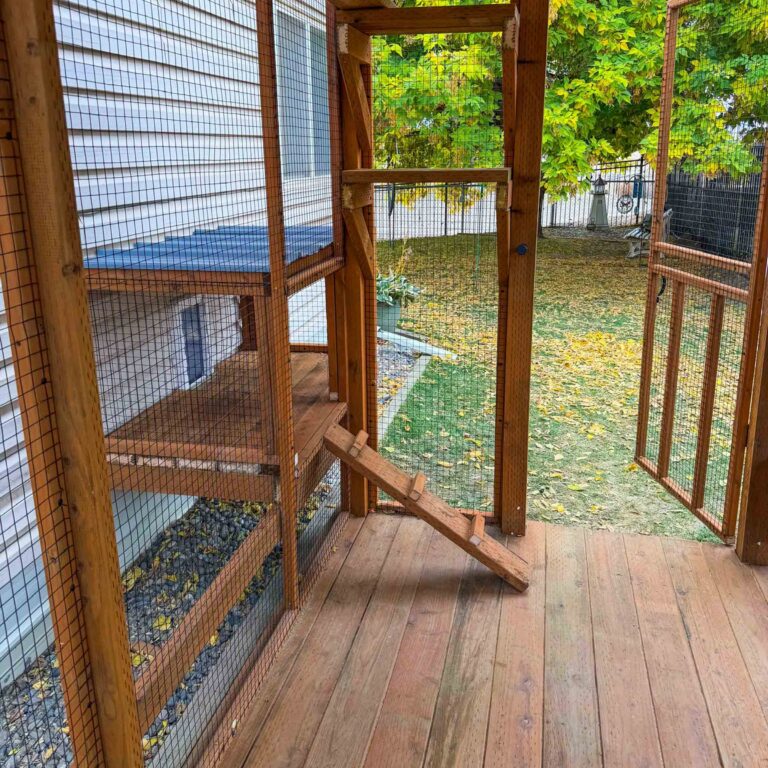

Interior view of a custom cedar catio featuring a mid-level platform, angled climbing ramp with traction cleats, secure wire mesh walls, and a spacious wood deck floor overlooking a backyard with fall foliage.

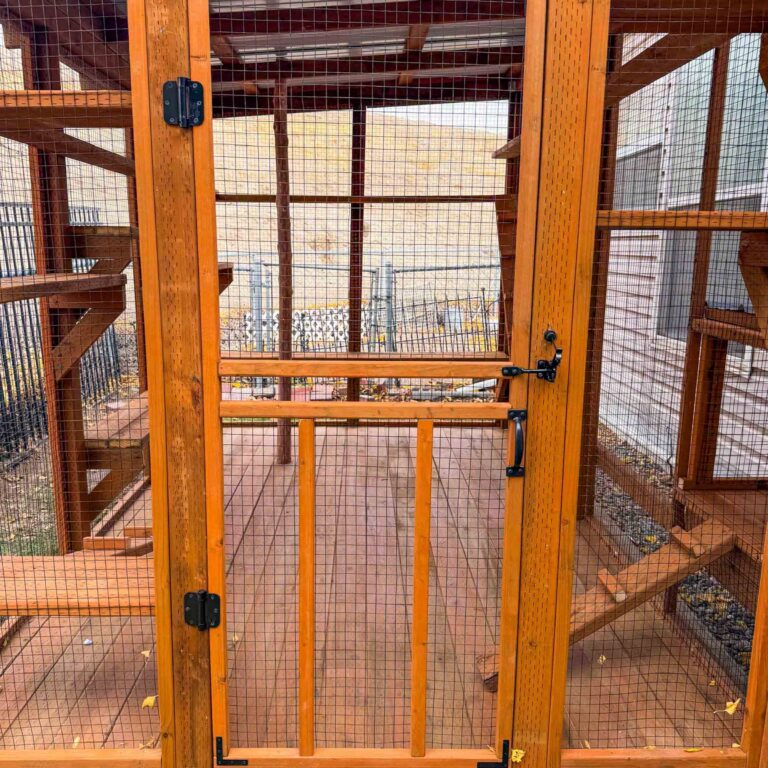

Front-facing view of a custom cedar catio door with black hardware, secure latch system, and wire mesh panels revealing interior shelves and climbing structures.

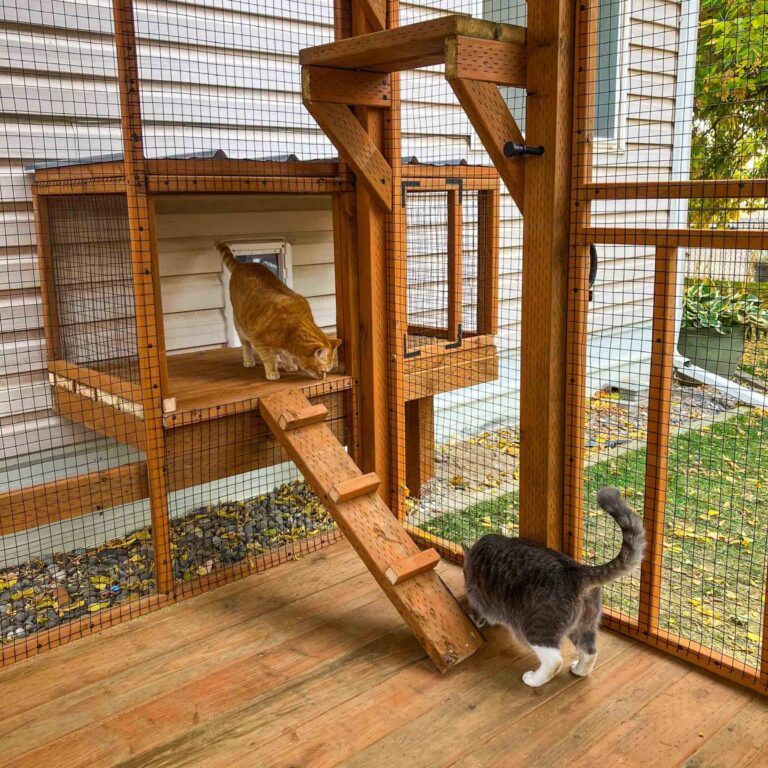

Two cats inside a custom cedar catio, one orange tabby on a mid-level platform near the window access point and one gray and white cat standing on the wood deck floor near the climbing ramp.
Orange tabby cat walking along an elevated wooden shelf inside a cedar catio, surrounded by wire mesh walls and exposed roof beams.

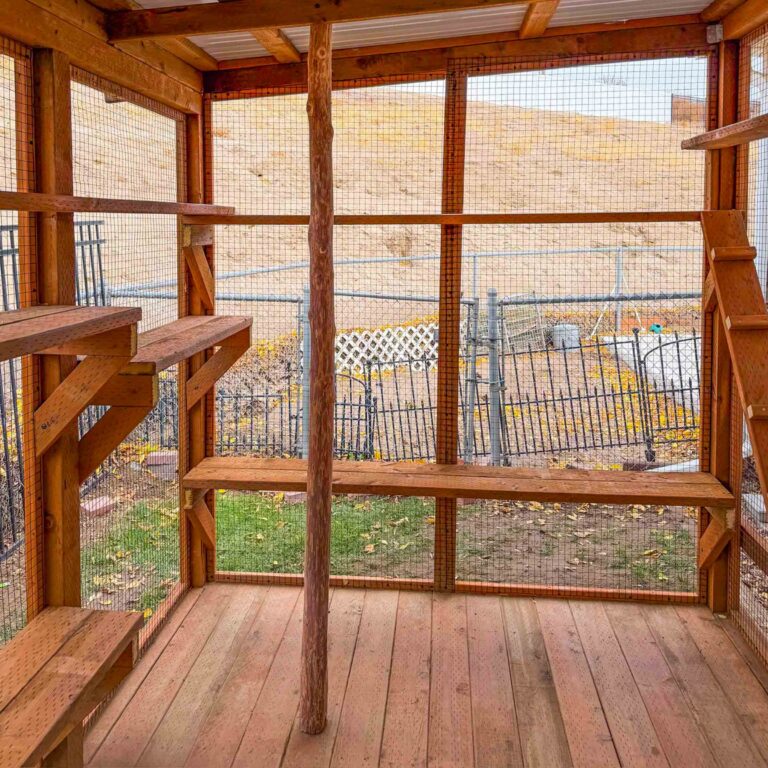

Spacious interior view of a cedar catio featuring multiple staggered wall-mounted shelves, a vertical natural wood climbing post, and a solid wood deck floor enclosed with wire mesh panels.
Gray and white cat perched on a wooden shelf inside a fully enclosed cedar catio, gazing through wire mesh panels at the outdoor landscape.
Orange tabby cat standing on a wooden platform inside a custom catio, sniffing near the top of a cedar climbing ramp with traction cleats and enclosed wire mesh walls.

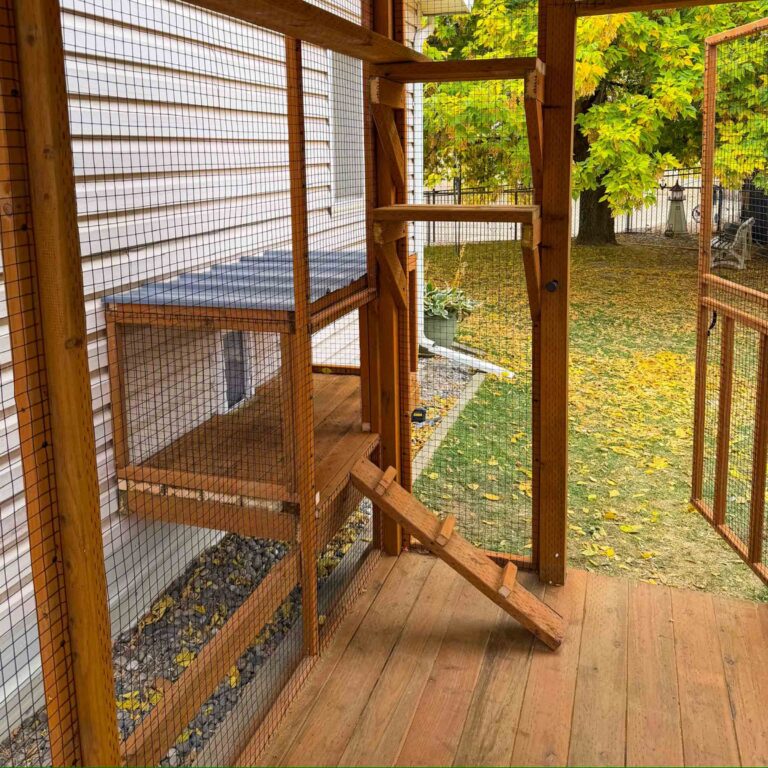

Interior view of a custom wooden catio attached to a home, featuring multiple wall-mounted cedar shelves, a small angled climbing ramp with traction cleats, wire mesh panels for safety, and a spacious wood deck floor overlooking a backyard with autumn leaves.

Materials Used

Lumber: Pressure-Treated

Why Pressure-Treated Lumber?

  • Engineered for long-term durability in outdoor environments, especially in wet climates like Washington
  • Resistant to rot, decay, and insect damage for added structural longevity
  • Strong and reliable framing material for fully freestanding enclosures
  • Provides a solid foundation for roofing, fencing, and interior enrichment features
Close-up interior view of a wooden catio climbing ramp with traction cleats leading to a mid-level shelf, surrounded by secure wire mesh panels and house siding backdrop.

Roofing Options

Roofing: Ribbed Steel Metal

  • Installed on both the main 10’ x 8’ x 8’ catio and the enclosed access tunnel
  • Provides reliable protection from Washington rain, moisture, and sun exposure
  • Durable against wind and seasonal weather fluctuations
  • Designed for long-term performance with minimal maintenance required

Enclosed Tunnel Design

  • 3-foot tall x 4-foot wide tunnel extending 2–4 linear feet from the house wall
  • Fully enclosed and roof-covered for safe, weather-protected access
  • Connects directly to a permanent wall-mounted cat door for seamless entry and exit
  • Maintains structural independence while linking the home to the freestanding catio
  • Built with pressure-treated framing and 1×1 black PVC-coated critter fencing for safety and visibility
Interior view of a cedar catio roof structure showing exposed wooden beams, secure wire mesh walls, and multi-level shelves beneath a weather-protected slanted roof.

Fencing: 1×1 Black Critterfencing

  • Material: Galvanized steel core with protective black PVC coating
  • Mesh Size: 1×1 inch square openings

Why This Fencing?

  • Keeps cats securely enclosed within the 10’ x 8’ x 8’ freestanding main catio and enclosed access tunnel
  • Provides strong structural protection while maintaining open sightlines and airflow
  • Durable and weather-resistant, ideal for year-round exposure in Washington’s climate
  • Black PVC coating reduces visual obstruction, creating a cleaner, more seamless outdoor look
  • Rust-resistant finish ensures long-term performance with minimal maintenance required
Gray and white cat perched on a wooden shelf inside a fully enclosed cedar catio, gazing through wire mesh panels at the outdoor landscape.

Interior Features & Enrichment

This custom catio was designed to encourage movement, vertical exploration, and daily enrichment for four cats. The interior layout supports climbing, perching, scratching, and shared time with their owners, creating a balanced outdoor space that promotes both activity and relaxation.

Feature List

  • Climbing Shelves (Expanded Layout)
    Multiple shelves installed at varied heights throughout the 10’ x 8’ enclosure allow cats to leap, perch, and observe their surroundings. Additional shelves were incorporated to increase vertical pathways and maximize usable wall space for full-body movement and enrichment.
  • Ramps
    Slanted ramps connect shelf levels, creating smooth transitions between elevations and making vertical movement accessible and engaging for cats of all activity levels.
  • Cedar Scratch Post
    A built-in cedar scratch post encourages natural scratching behavior, supporting claw health while providing a dedicated outlet for instinctive activity within the enclosure.
  • Human Access Door
    A custom-built door allows owners to comfortably enter the catio, making it easy to spend time inside, interact with their cats, and maintain the space as needed.

Feature Purpose & Pet Personality Fit

This custom catio was thoughtfully designed around the unique personalities and energy levels of four beloved cats. With three young, energetic cats who love late-night zoomies, climbing high cabinets, and perching above the action—and one senior cat who prefers peaceful lounging—the layout balances high-energy vertical movement with comfortable resting zones. The result is a shared outdoor space that supports every stage of life and personality type.

  • The generous 10’ x 8’ x 8’ footprint provides ample room for bursts of energy, giving the three younger cats space to run, leap, and safely channel their nighttime zoomies.
  • Elevated shelves were intentionally installed at higher levels to mimic their natural habit of climbing cabinets and seeking high vantage points, satisfying their instinct to observe from above.
  • Integrated ramps create accessible vertical pathways, allowing energetic climbers to move fluidly between levels while also supporting safer navigation for the senior cat.
  • The cedar scratch post offers a dedicated outlet for scratching and stretching, supporting active play while protecting the structure.
  • Lower, open lounging areas within the enclosure provide the senior cat with a calm, comfortable space to relax outdoors without needing to climb.
  • The fully freestanding, spacious design ensures all four cats can share the enclosure comfortably—whether they’re sprinting, perching, or peacefully soaking in the fresh air.
